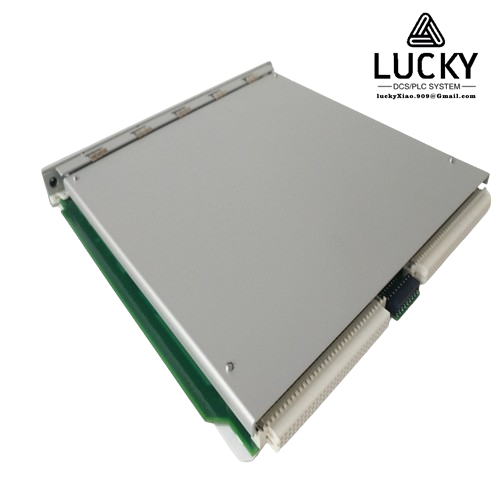

BENTLY NEVADA本特利 3500/42M 176449-02 ▏四通道监测器模块 ▏

BENTLY NEVADA本特利3500/42M 176449-02是一款可组态的四通道监测器模块，主要用于振动和位置测量。以下是对其的详细介绍：

1. 功能与特点：

• 该模块是一个四通道监视器，可以接收来自接近传感器和地震传感器的输入。
• 它能够调节信号，提供各种振动和位置测量。
• 监测器模块可以与用户可编程的警报进行比较，从而进行故障预警和诊断。

2. 应用范围：

• 本特利3500/42M 176449-02模块在工业监控系统中广泛应用，尤其适用于监测大型燃气和蒸汽轮机的运行状态。
• 它能够监测径向振动、推力位置、差分膨胀、偏心率、雷巴姆、加速度、速度以及绝对轴等参数。

3. 技术规格：

• 输入阻抗为10kΩ。
• 标准I/O功耗为7.7W。
• 通道可以成对编程。

4. 兼容性与配置：

• 该模块与3500机架配置软件兼容，可以执行多种功能，如径向振动、推力位置、差分膨胀、偏心率、雷巴姆、加速度、速度、绝对轴以及圆形接受区域等测量。
• 它还可以与其他BENTLY NEVADA的监测器和I/O模块配合使用，如位移/速度加速度监测器（176449-02）和位移/速度加速度I/O模块（带内部或外部端子）。

5. 认证与标准：

• 本特利3500/42M 176449-02模块具有TüV认证，符合相关的工业和安全标准。

BENTLY NEVADA Bentley 3500/42M 176449-02 is a configurable four channel monitoring module primarily used for vibration and position measurement. Here is a detailed introduction to it:

Function and features:

1. This module is a four channel monitor that can receive inputs from proximity sensors and seismic sensors.

2. It can adjust signals and provide various vibration and position measurements.

3. The monitor module can be compared with user programmable alarms for fault warning and diagnosis.

Application scope:

The Bentley 3500/42M 176449-02 module is widely used in industrial monitoring systems, especially suitable for monitoring the operating status of large gas and steam turbines.

2. It can monitor parameters such as radial vibration, thrust position, differential expansion, eccentricity, rebam, acceleration, velocity, and absolute axis.

Technical specifications:

1. The input impedance is 10k Ω.

2. The standard I/O power consumption is 7.7W.

3. Channels can be programmed in pairs.

Compatibility and configuration:

1. This module is compatible with the 3500 rack configuration software and can perform various functions, such as radial vibration, thrust position, differential expansion, eccentricity, Rebam, acceleration, velocity, absolute axis, and circular receiving area measurement.

2. It can also be used in conjunction with other BENTLY NEVADA monitors and I/O modules, such as displacement/velocity acceleration monitors (176449-02) and displacement/velocity acceleration I/O modules (with internal or external terminals).

Certification and Standards:

The Bentley 3500/42M 176449-02 module has T ü V certification and complies with relevant industrial and safety standards.
