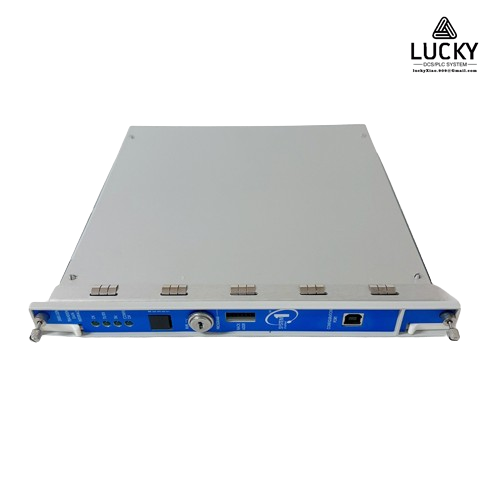

Bently Nevada 3500/22M 288055-01 瞬态数据接口（TDI）模块

Bently Nevada 3500/22M 288055-01 是一个由Bently Nevada公司开发的瞬态数据接口（TDI）模块，它用于与3500监控系统兼容的软件进行接口。该模块具有多种功能和特点，以下是对其的详细介绍：

1. 应用与兼容性：

• 该模块是专为3500监控系统设计的，该系统包括状态监控和诊断软件以及系统配置软件。
• TDI模块能够与3500/20机架接口模块（RIM功能）以及通信处理器（如TDXnet）相结合，以收集数据。

2. 位置与功能：

• 在3500机架中，3500/22M TDI位于电源旁边的插槽中。
• 它持续收集稳态和瞬态动态（波形）数据，并通过以太网链路将此数据传输到主机软件。
• TDI与M系列监视器（如3500/40M、3500/42M等）进行交互。

3. 数据收集功能：

• 除了传统的静态数据收集功能外，3500/22M TDI还可以使用可选的通道启用磁盘记录动态、高分辨率的瞬态数据。

4. 振动监测与故障诊断：

• 该模块具有高精度的振动监测功能，可以实时监测设备的振动情况，包括振动速度、加速度和位移等参数。
• 通过采集和分析振动数据，该模块能够识别和诊断机械故障，如轴承磨损、不平衡、松动等问题，并及时发出警报或触发维护操作。

5. 其他特性：

• 3500/22M TDI具有高可靠性和稳定性，适用于工业环境中的长期运行。
• 该模块通常提供多种配置选项，可以根据具体应用需求进行定制，包括输入通道数、采样率、报警设置等。
• 它还具备多种通信接口，支持与其他监控系统或控制系统进行数据交互和集成。

Bently Nevada 3500/22M 288055-01 is a Transient Data Interface (TDI) module developed by Bently Nevada for interface with software compatible with 3500 monitoring systems. This module has multiple functions and characteristics, and the following is a detailed introduction to it:

Application and compatibility:

This module is designed specifically for the 3500 monitoring system, which includes status monitoring and diagnostic software as well as system configuration software.

The TDI module can be combined with the 3500/20 rack interface module (RIM function) and communication processors (such as TDXnet) to collect data.

Location and Function:

In a 3500 rack, the 3500/22M TDI is located in the slot next to the power supply.

It continuously collects steady-state and transient dynamic (waveform) data and transmits this data to the host software through an Ethernet link.

TDI interacts with M-series monitors (such as 3500/40M, 3500/42M, etc.).

Data collection function:

In addition to the traditional static data collection function, the 3500/22M TDI can also use optional channels to enable disk recording of dynamic, high-resolution transient data.

Vibration monitoring and fault diagnosis:

This module has high-precision vibration monitoring function, which can monitor the vibration situation of the equipment in real time, including parameters such as vibration speed, acceleration, and displacement.

By collecting and analyzing vibration data, this module can identify and diagnose mechanical faults such as bearing wear, imbalance, looseness, etc., and promptly issue alarms or trigger maintenance operations.

Other features:

The 3500/22M TDI has high reliability and stability, making it suitable for long-term operation in industrial environments.

This module typically provides multiple configuration options that can be customized according to specific application requirements, including input channel count, sampling rate, alarm settings, etc.

It also has multiple communication interfaces, supporting data exchange and integration with other monitoring or control systems.
